Oil Cooling Applications

Technical Data

MIT Brazed Heat Exchangers are used in both cooling units and heating applications. In cooling units they are used as evaporators and condensers.

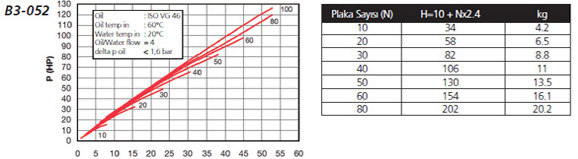

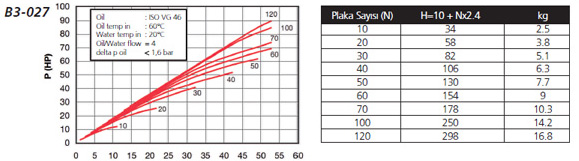

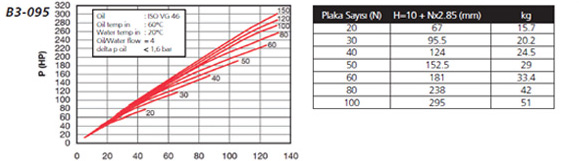

The cooling capacity is also dependent on the viscosity class. At a lower viscosity class the cooling capacity increases, at a higher viscosity class it decreases.



In order to make an accurate calculation, the following details are required:

  • type of oil
  • premissable tank temperature
  • required outlet temperature of the oil or necessary cooling capacity
  • inlet temperature of the water and maximum water quantity.




Selection Program
The cooler selection program calculates the correct heat exchanger in the case of non-standard operating data. Please contact our technical sales department.
